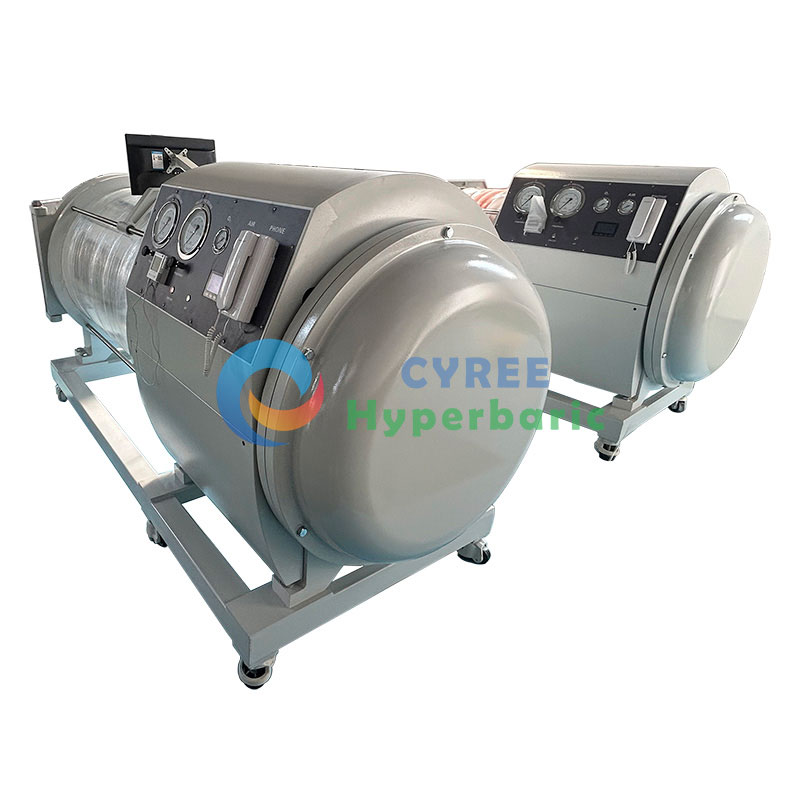

200 KPA HBOT chamber for decompression sickness
Hyperbaric oxygen chambers represent the most fundamental and effective treatment for decompression sickness (commonly known as “the bends”). Their core principle adheres to the laws of gas physics and physiology, employing a scientific process of “pressurization, stabilization, and gradual decompression” to eliminate abnormal gas bubbles within the body and restore normal tissue function.
Step 1: Pressurization—Forcing Bubbles Back
When divers ascend too rapidly, inert gases dissolved in the blood and tissues (primarily nitrogen) escape due to sudden pressure reduction, forming microscopic bubbles. These bubbles obstruct blood vessels and compress nerves, triggering symptoms such as severe joint pain, skin itching, dizziness, numbness, and even paralysis.
The first step in hyperbaric oxygen chamber therapy is rapidly elevating chamber pressure to a level exceeding the depth at which symptoms occurred (typically 2.0 to 2.8 ATA or higher, determined by symptom severity and diving profile). According to Boyle’s Law (at constant temperature, gas volume is inversely proportional to pressure), increasing environmental pressure immediately compresses existing bubbles within the body, significantly reducing their size. This alleviates mechanical compression on blood vessels and nerves, rapidly relieving acute pain and neurological symptoms.
Step 2: Stable Pressure Oxygenation—Accelerating Bubble Dissolution and Expulsion
At the target pressure, the patient breathes high-concentration oxygen (typically 100%) via a mask for a sustained period. This phase plays a critical role:
Oxygen Displaces Nitrogen: According to Henry’s Law, the solubility of a gas in a liquid is proportional to its partial pressure. Inhaling high partial pressure oxygen significantly increases blood oxygen partial pressure while creating a substantial nitrogen partial pressure gradient. This drives nitrogen diffusion from bubbles and surrounding tissues into the bloodstream, while oxygen is metabolized by tissues. This process accelerates nitrogen dissolution and elimination within bubbles.
Correcting Hypoxia and Edema: Hyperbaric oxygen dramatically increases the physical solubility of oxygen in plasma, enabling direct oxygen delivery to hypoxic tissues without relying on hemoglobin. This rapidly corrects tissue ischemia and hypoxia caused by bubble embolism while reducing vascular leakage and edema.
Step 3: Slow Decompression—Safely and Thoroughly “Guiding” Gas Out
This is critical to treatment success. After bubbles are largely dissolved and symptoms sufficiently alleviated, chamber pressure is reduced at an extremely slow, controlled rate following a strictly defined decompression profile. This process mimics the “staged decompression” required in diving, allowing ample time for residual dissolved inert gases in the body to be gradually transported via the bloodstream to the lungs and safely exhaled. This prevents the reformation of harmful bubbles during decompression.
In summary, hyperbaric oxygen chamber therapy for decompression sickness is a systematic physical treatment process: it first addresses symptoms by compressing small bubbles, then accelerates bubble dissolution and improves tissue oxygenation through steady-pressure oxygenation to address the root cause, and finally ensures safe gas expulsion and prevents recurrence through meticulously controlled, gradual decompression. Conducted under strict monitoring, this therapy directly targets the core pathology of decompression sickness, offering a curative treatment.
Specifications of HBOT chamber
| Chamber Materials | Steel frame + acrylic tube |
|---|---|
| Number of Treated Persons | 1 Person |
| Working Pressure | Max. 3.0 ATA (adjustable) |
| Exterior Diameter | 900mm |
| Interior Diameter | 820mm |
| Length of the acrylic tube section | 1300mm |
| Length of the Steel section | 900mm |
| Overall exterior length | 2600mm |
| Total height | 1440mm |
| Total width | 1070mm |
| Total volume | 1.6m³ |
| Approximated weight | 1300KG |
| Width of the stretcher | 700mm |
| Length of the stretcher | 2130mm |
| Host Power | 5600W |
| Voltage | AC220V / AC110V (±10%) |
| Oxygen flow rate | 30L/min |
| Compressor Type | Oil-free |
Description of HBOT chamber

Special Steel
Special steel used for manufacturing pressure vessels and special equipment.

High-transmittance Acrylic Tube
High-transmittance, explosion-proof and resistant to yellowing.

Push-type Lathe
A push-type lathe assists the operator in moving the patient into the chamber.

High-flow Concentrator
30L/min high-flow oxygen concentator with polymer sieve.

Television
Patients can enjoy watching TV programs during the therapy.

Control Panel
There are knobs, meters, and display on the control panel for easy operation.

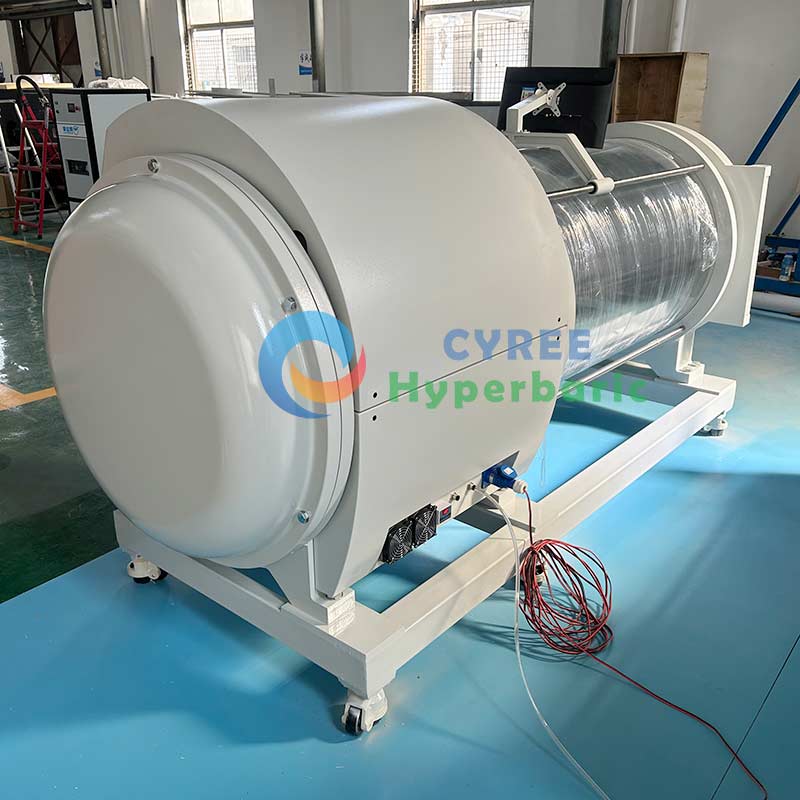

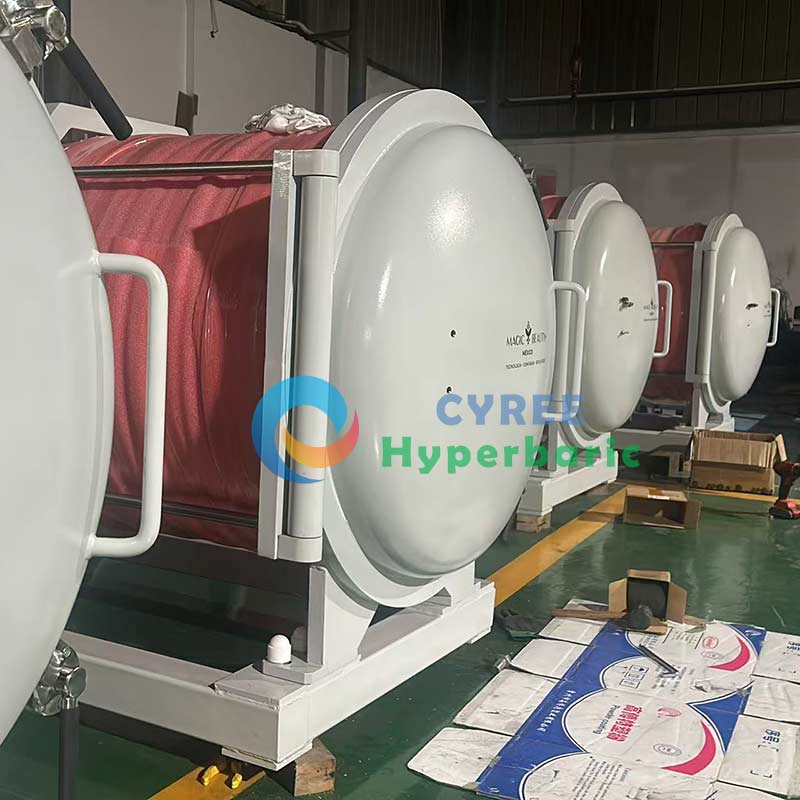

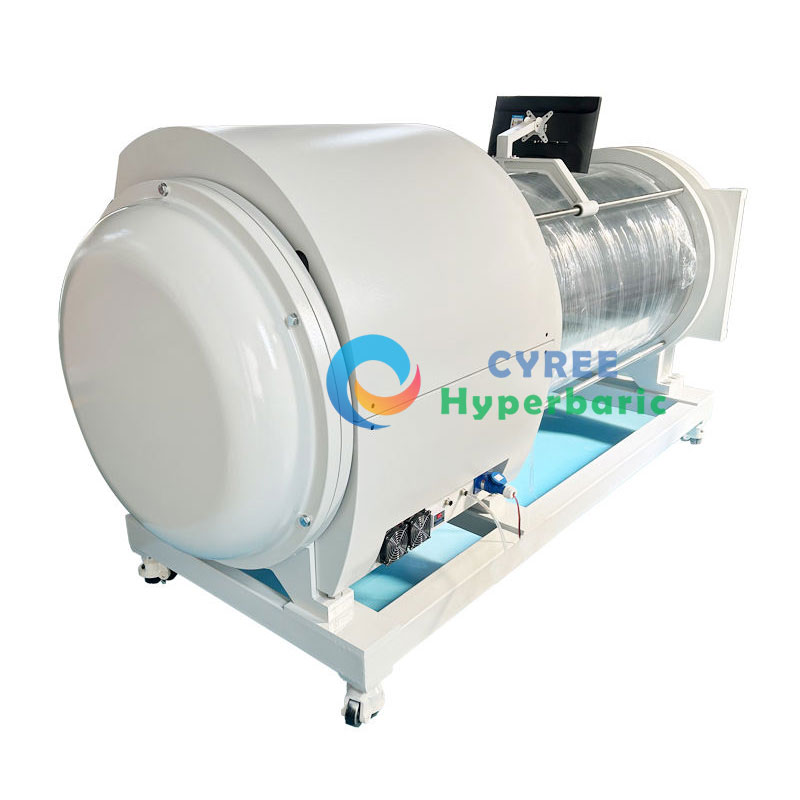

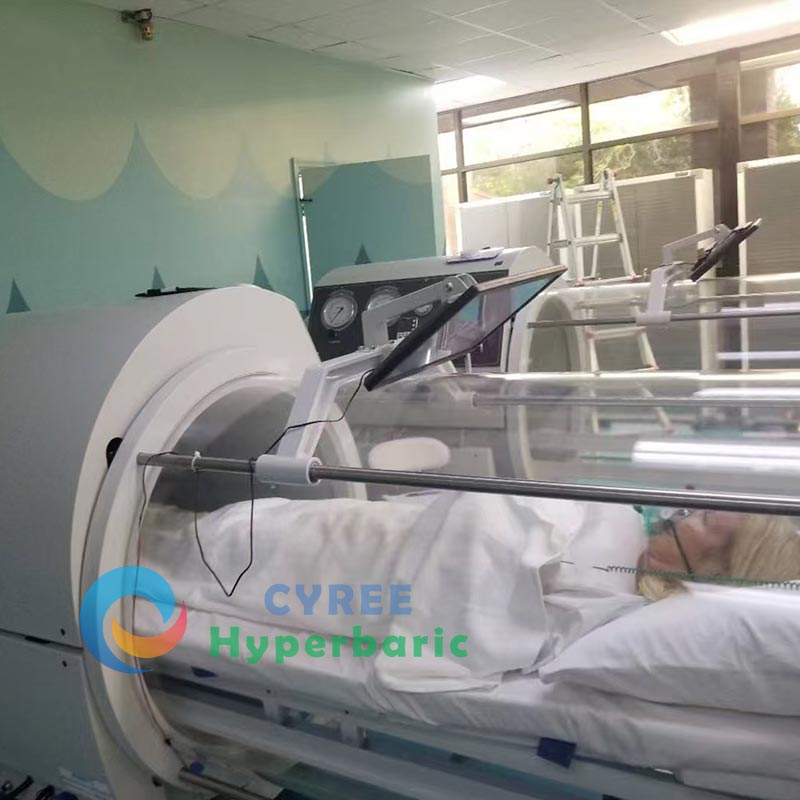

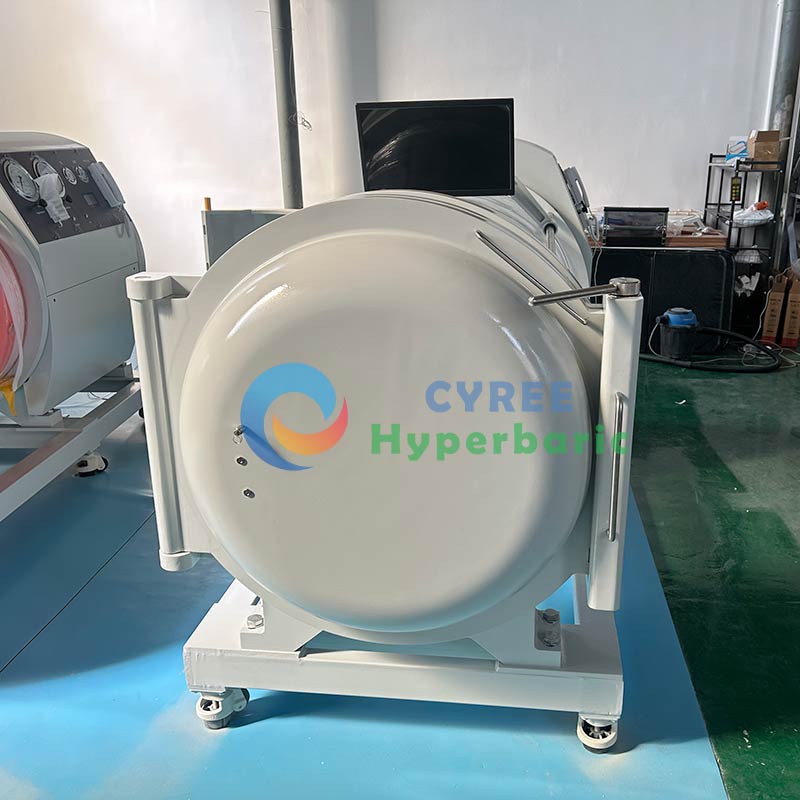

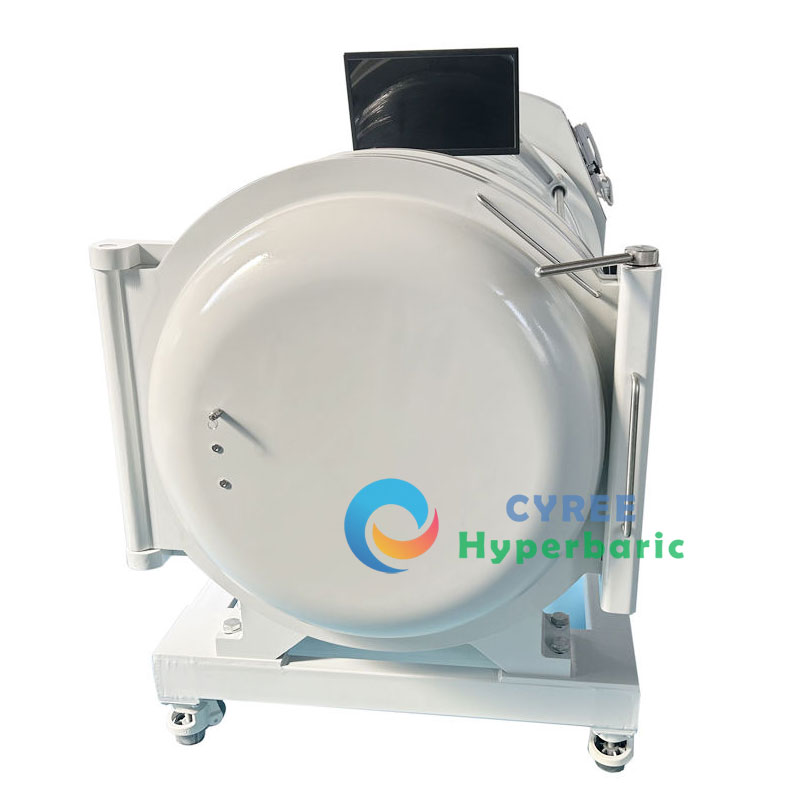

Product Show of HBOT chamber
Our 200 KPA HBOT chamber is a highly safe and comfortable device. Its pressure is adjustable, allowing doctors to customize settings based on each patient’s specific condition. The spacious interior prevents patients from feeling confined. Equipped with a television and air conditioning, patients can relax comfortably during treatment.
The entire system comes fully integrated with an oxygen generator and air compressor, eliminating the need for additional oxygen supply sources. You can begin treatment directly using our HBOT chamber.
Our HBOT chambers can enhance your blood oxygen levels, promote blood circulation, and improve your overall physical condition. You can use our oxygen chambers for wellness, beauty treatments, fatigue relief, and as an adjunct therapy for various medical conditions. Till now, our chambers have been widely applied in various kinds of scenarios, such as clinics, hospitals, homes, beauty salons, gyms, spas, hotels, hyperbaric oxygen therapy centers, rehabilitation centers, plateaus, confinement centers, old people’s homes, sports centers, etc.
Introduction about our factory of HBOT chamber
CYREE is a one-stop manufacturer for hyperbaric oxygen chamber by integrating R&D, design, production, sales and service. Located in China, our factory covers an area of 20,000 square meters, equipped with a series of advanced production equipment and precise testing instruments. We have passed ISO9001, ISO13485 and ISO14001 quality management systems and we have obtained a series of certification for our hyperbaric chambers such as CE, EMC, LVD, FCC, etc. We are not only a golden hyperbaric chamber supplier, but also an experienced exporter. Till now, we have shipped thousands of hyperbaric chambers to our customers worldwide to help them do successful business or improve their health conditions.
