2.0 ATA Lying Hyperbaric O2 Chamber for Injury Recovery
Home - 2 ATA Hyperbaric Chambers - 2.0 ATA Lying Hyperbaric O2 Chamber for Injury Recovery

2.0 ATA Lying Hyperbaric O2 Chamber for Injury Recovery

  • 2.0 ATA Lying Hyperbaric O2 Chamber for Injury Recovery
  • 2.0 ATA Lying Hyperbaric O2 Chamber for Injury Recovery
  • 2.0 ATA Lying Hyperbaric O2 Chamber for Injury Recovery
  • 2.0 ATA Lying Hyperbaric O2 Chamber for Injury Recovery
  • 2.0 ATA Lying Hyperbaric O2 Chamber for Injury Recovery
Product Features

The pressure is adjustable. The maximum treatment pressure is 2.0 ATA.
The chamber is made of hardest special steel and high-transparency acrylic, explosion-proof and highly safe.
360-degree visual design that benefits the patients with claustrophobia. The internal environment is comfortable.
The system has interphones for the communications between the patient and the doctor.
Dimensions: Total length 2862mm, width 1110mm, height 1480mm. Total weight 1450kg.
Air cooler is available inside the chamber.

SKU: CHC-E1

How does a hyperbaric o2 chamber do help to injury recovery?

Hyperbaric oxygen chambers, as a cutting-edge non-invasive physical therapy modality, are emerging as a core tool for accelerating rehabilitation in sports injuries, trauma, and post-surgical recovery. Their efficacy extends far beyond symptom relief; through precise physiological intervention, they create an optimal repair environment for damaged tissues at the cellular level, systematically advancing all stages of injury recovery.

Crucially, they overcome local blood supply limitations to achieve “deep oxygen perfusion.” Following injury, local tissues experience vascular damage, inflammation, and edema, leading to microcirculatory impairment and severe hypoxia. This oxygen-deprived environment inhibits cellular energy metabolism, delays collagen synthesis, and may exacerbate tissue damage. Inside the hyperbaric chamber, patients inhale pure oxygen at pressures ranging from 1.4 to 2.5 ATA, increasing the physically dissolved oxygen content in the blood by over tenfold. This dissolved oxygen acts like an “express delivery service,” efficiently diffusing directly through plasma to ischemic and hypoxic injury sites with poor circulation. It rapidly elevates tissue oxygen partial pressure, supplying ample energy substrates to damaged muscles, ligaments, bones, and nerve cells. This directly counters the hypoxic state at the injury core, pressing the “start button” for repair.

Second, it powerfully regulates inflammation and edema, shortening the initial recovery phase. Hyperbaric oxygen possesses unique vasoregulatory effects: while constricting local blood vessels to reduce vasogenic edema, it simultaneously ensures tissue oxygenation by substantially increasing blood oxygen content. This “reducing edema without compromising oxygen supply” effect effectively lowers interstitial pressure and improves microcirculatory stasis. Simultaneously, hyperbaric oxygen modulates key inflammatory mediators, suppressing excessive inflammatory responses and mitigating secondary damage. This creates a cleaner, more stable internal environment for tissue repair, helping patients navigate the acute phase of swelling and pain more swiftly.

More crucially, it directly accelerates tissue regeneration and functional restoration. Adequate oxygen is fundamental to cell proliferation and protein synthesis. Hyperbaric oxygen significantly:

  • Stimulates neovascularization: By upregulating vascular endothelial growth factor, it promotes capillary formation, establishing a richer, more enduring blood supply network in the injured area.
  • Promote fibroblast activation and collagen synthesis: This is crucial for repairing soft tissues like ligaments and tendons, as well as wound healing, resulting in stronger, more orderly fibrous tissue.
  • Support bone healing: Enhances osteoblast activity, promotes calcium salt deposition, and accelerates callus formation and remodeling after fractures.
  • Preserve nerve function: Reduces nerve edema, improves nerve conduction, and aids in repairing peripheral nerve injuries.

Therefore, integrating hyperbaric oxygen therapy into injury recovery protocols signifies a shift from passive waiting to active repair intervention. It not only significantly shortens recovery time and reduces pain and swelling but also enhances healing quality and lowers complication risks. This helps athletes, sports enthusiasts, and trauma patients of all kinds return to the field and daily life faster and safer, achieving truly high-quality rehabilitation.

Specifications of hyperbaric o2 chamber

Chamber Materials Steel frame + acrylic tube
Number of Treated Persons 1 Person
Working Pressure Max. 2.0 ATA (adjustable)
Exterior Diameter 900mm
Interior Diameter 820mm
Length of the acrylic tube section 1300mm
Length of the Steel section 900mm
Overall exterior length 2600mm
Total height 1440mm
Total width 1070mm
Total volume 1.6m³
Approximated weight 1450KG
Width of the stretcher 700mm
Length of the stretcher 2130mm
Host Power 5600W
Voltage AC220V / AC110V (±10%)
Oxygen flow rate 30L/min
Compressor Type Oil-free

Description of hyperbaric o2 chamber

special steel of 3 ata hyperbaric chamber

Special Steel

Special steel used for manufacturing pressure vessels and special equipment.

acrylic tube of 3 ata hyperbaric chamber

High-transmittance Acrylic Tube

High-transmittance, explosion-proof and resistant to yellowing.

push type lathe of 3 ata hyperbaric chamber

Push-type Lathe

A push-type lathe assists the operator in moving the patient into the chamber.

oxygen concentrator of 3 ata hyperbaric chamber

High-flow Concentrator

30L/min high-flow oxygen concentator with polymer sieve.

television of 3 ata hyperbaric chamber

Television

Patients can enjoy watching TV programs during the therapy.

control panel of 3 ata hyperbaric chamber

Control Panel

There are knobs, meters, and display on the control panel for easy operation.

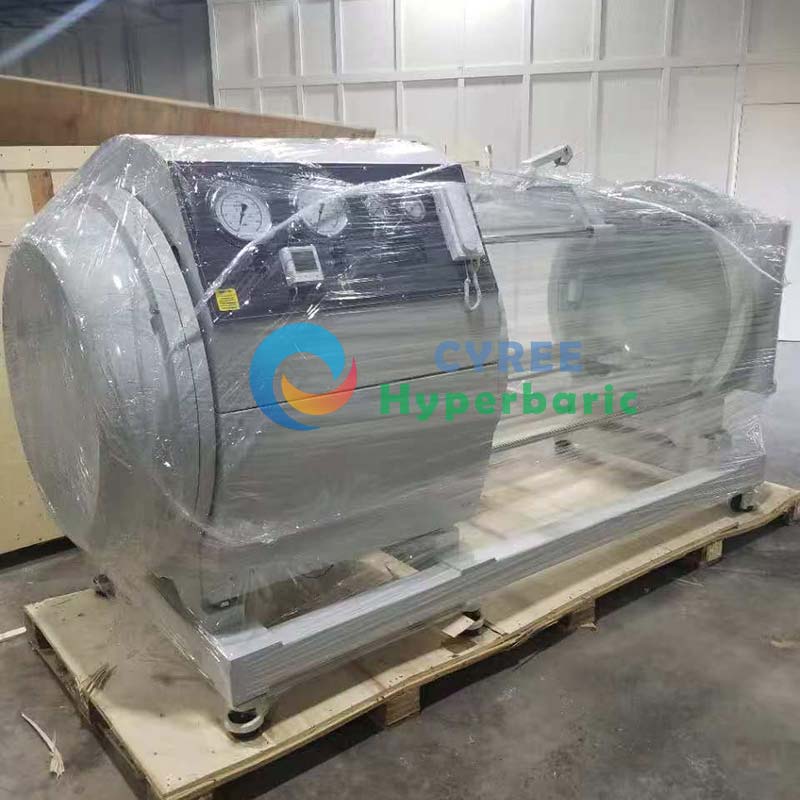

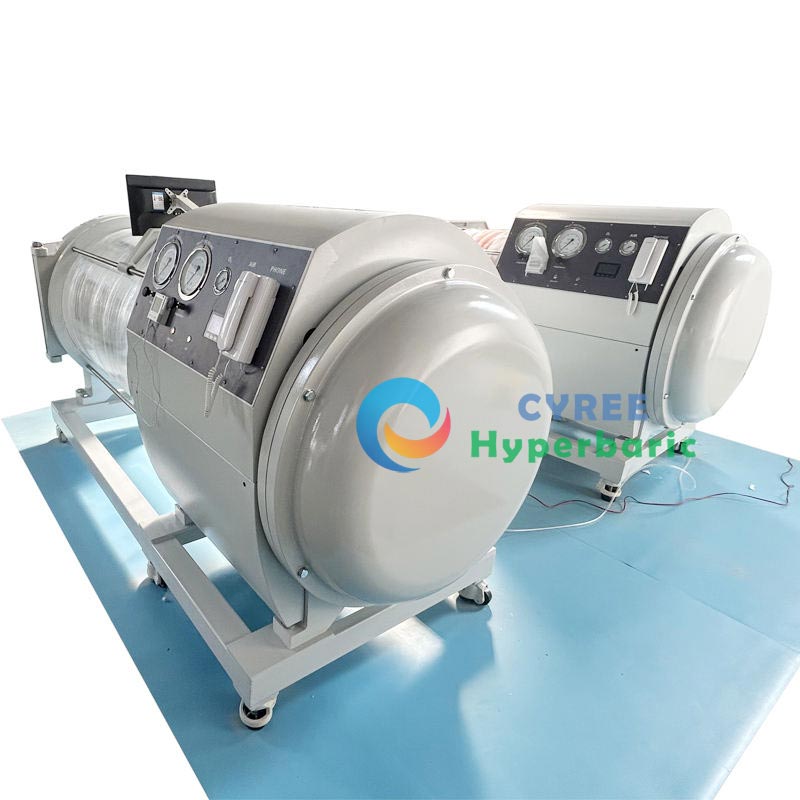

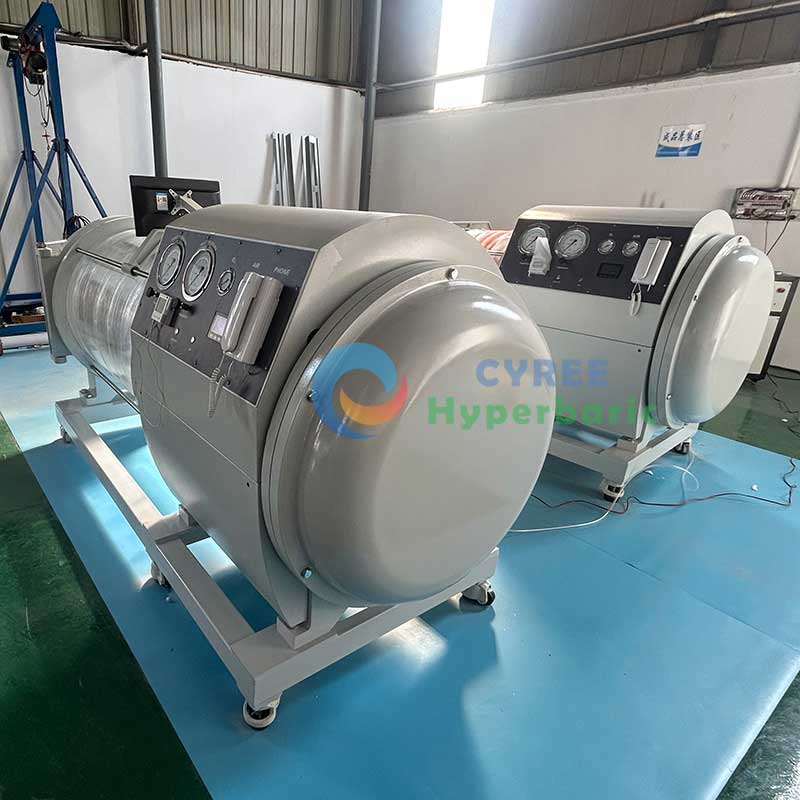

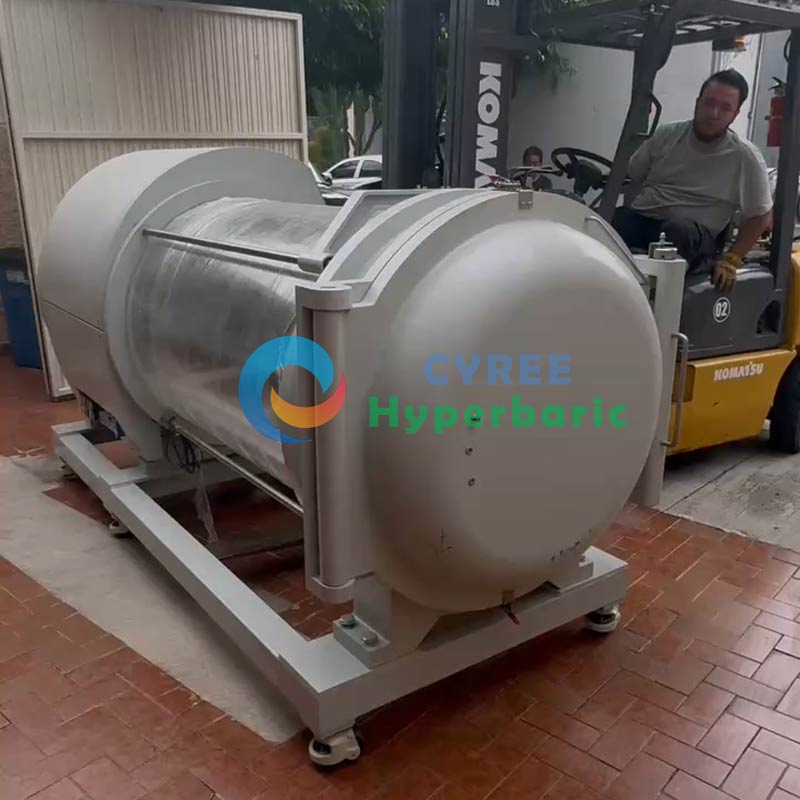

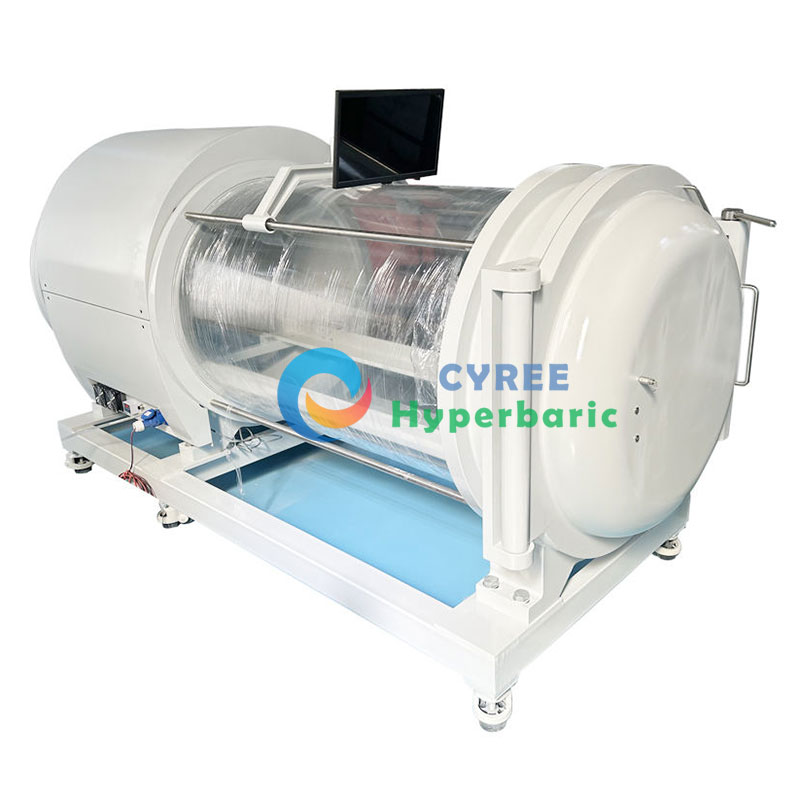

Product Show of hyperbaric o2 chamber

Our 2.0 ATA hyperbaric o2 chamber is a highly safe and comfortable device. Its pressure is adjustable, allowing doctors to customize settings based on each patient’s specific condition. The spacious interior prevents patients from feeling confined. Equipped with a television and air conditioning, patients can relax comfortably during treatment.

The entire system comes fully integrated with an oxygen generator and air compressor, eliminating the need for additional oxygen supply sources. You can begin treatment directly using our hyperbaric o2 chamber.

Our hyperbaric o2 chambers can enhance your blood oxygen levels, promote blood circulation, and improve your overall physical condition. You can use our oxygen chambers for wellness, beauty treatments, fatigue relief, and as an adjunct therapy for various medical conditions. Till now, our chambers have been widely applied in various kinds of scenarios, such as clinics, hospitals, homes, beauty salons, gyms, spas, hotels, hyperbaric oxygen therapy centers, rehabilitation centers, plateaus, confinement centers, old people’s homes, sports centers, etc.

3 ata hyperbaric oxygen chamber for sale
3 ata hyperbaric oxygen chamber for sale
3 ata hyperbaric oxygen chamber for sale
3 ata hyperbaric oxygen chamber for sale
3 ata hyperbaric oxygen chamber for sale
3 ata hyperbaric oxygen chamber for sale
3 ata hyperbaric oxygen chamber for sale

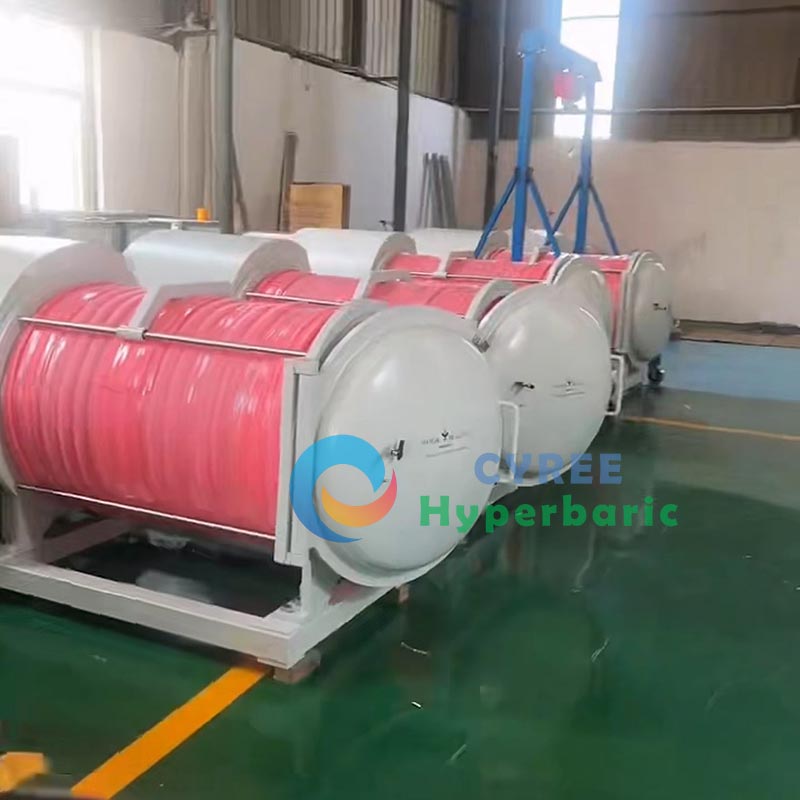

Introduction about our factory of hyperbaric o2 chamber

CYREE is a one-stop manufacturer for hyperbaric oxygen chamber by integrating R&D, design, production, sales and service. Located in China, our factory covers an area of 20,000 square meters, equipped with a series of advanced production equipment and precise testing instruments. We have passed ISO9001, ISO13485 and ISO14001 quality management systems and we have obtained a series of certification for our hyperbaric chambers such as CE, EMC, LVD, FCC, etc. We are not only a golden hyperbaric chamber supplier, but also an experienced exporter. Till now, we have shipped thousands of hyperbaric chambers to our customers worldwide to help them do successful business or improve their health conditions.

hyperbaric oxygen chamber factory
