The best hyperbaric oxygen chamber for hospital
Our hyperbaric oxygen chamber is the ideal choice for hospital hyperbaric therapy, combining medical-grade pressure, exceptional safety, user-friendly design, and flexible operation to comprehensively meet the professional demands of modern medical institutions.
First, the chamber supports medical-grade treatment pressures up to 3.0 ATA (Absolute Atmospheric Pressure). This pressure standard covers the vast majority of critical clinical scenarios requiring hyperbaric oxygen therapy, such as severe carbon monoxide poisoning, gas gangrene, radiation tissue damage, and non-healing wounds. This ensures hospitals can address diverse critical care and rehabilitation needs, delivering deep treatment aligned with authoritative guidelines.
Second, safety is prioritized through a high-strength medical-grade steel hull structure, reinforced by precise welding techniques and multi-layered safety protocols. This ensures exceptional pressure resistance and seal integrity during repeated pressurization and depressurization cycles. Each chamber undergoes rigorous national medical device safety testing and incorporates multiple emergency safety systems, establishing a reliable protective barrier for both medical staff and patients.
Third, we prioritize treatment experience and clinical observation needs. The chamber features a 360-degree transparent design, significantly enhancing visual clarity between the interior and exterior. This design not only facilitates real-time monitoring of patient status and equipment metrics by medical staff but also markedly alleviates anxiety and claustrophobia in enclosed spaces. It is particularly suitable for children, elderly patients, and those with anxiety, making the treatment process more reassuring and comfortable.
Additionally, this system offers exceptional operability and flexibility. The control system enables precise, smooth adjustment of pressure parameters within the therapeutic range. Physicians can customize and dynamically modify treatment protocols based on specific conditions and individual patient variations. The intelligent interface streamlines procedures, lowers operational barriers, and ensures efficient, accurate treatment delivery.
Specifications of hyperbaric oxygen chamber
| Chamber Materials | Steel frame + acrylic tube |
|---|---|
| Number of Treated Persons | 1 Person |
| Working Pressure | Max. 3.0 ATA (adjustable) |
| Exterior Diameter | 900mm |
| Interior Diameter | 820mm |
| Length of the acrylic tube section | 1300mm |
| Length of the Steel section | 900mm |

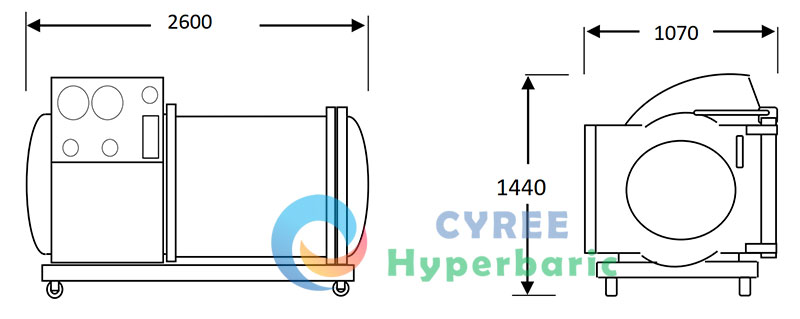

| Overall exterior length | 2600mm |
| Total height | 1440mm |
| Total width | 1070mm |
| Total volume | 1.6m³ |
| Approximated weight | 1300KG |
| Width of the stretcher | 700mm |
| Length of the stretcher | 2130mm |
| Host Power | 5600W |
| Voltage | AC220V / AC110V (±10%) |
| Oxygen flow rate | 30L/min |
| Compressor Type | Oil-free |
Description of hyperbaric oxygen chamber
Special Steel
Special steel used for manufacturing pressure vessels and special equipment.
High-transmittance Acrylic Tube
High-transmittance, explosion-proof and resistant to yellowing.

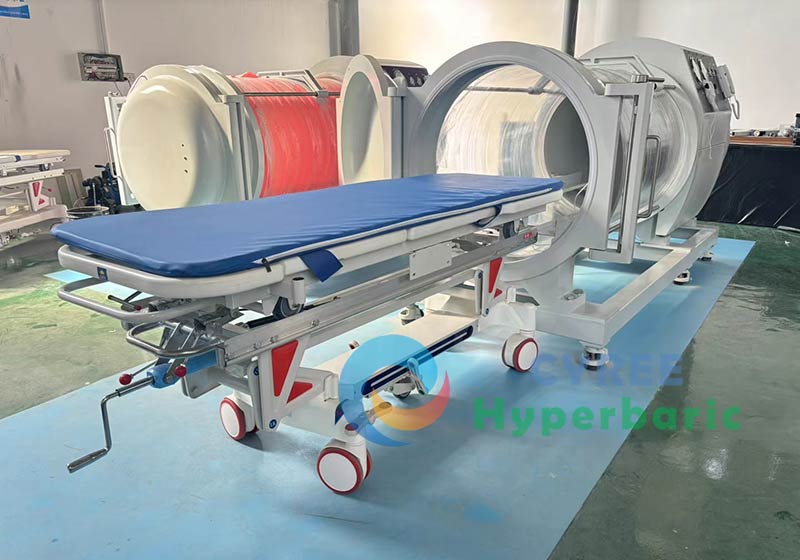

Push-type Lathe
A push-type lathe assists the operator in moving the patient into the chamber.

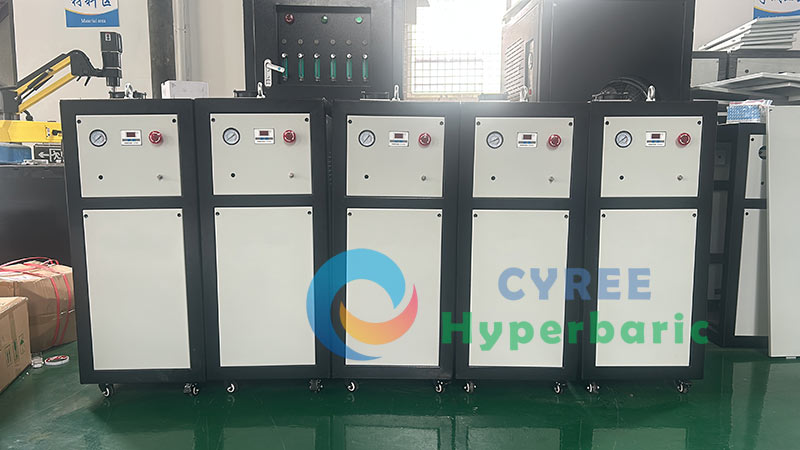

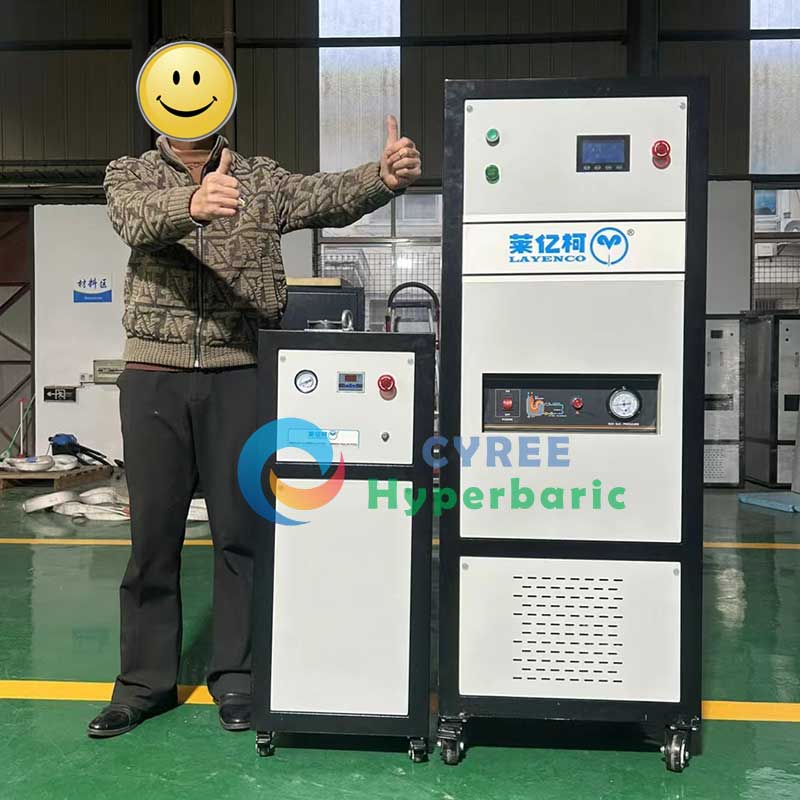

High-flow Concentrator
30L/min high-flow oxygen concentator with polymer sieve.

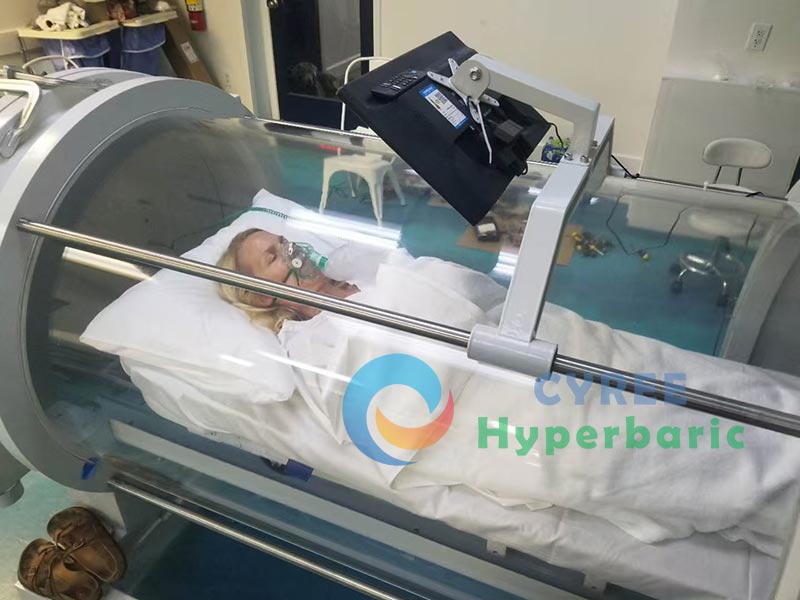

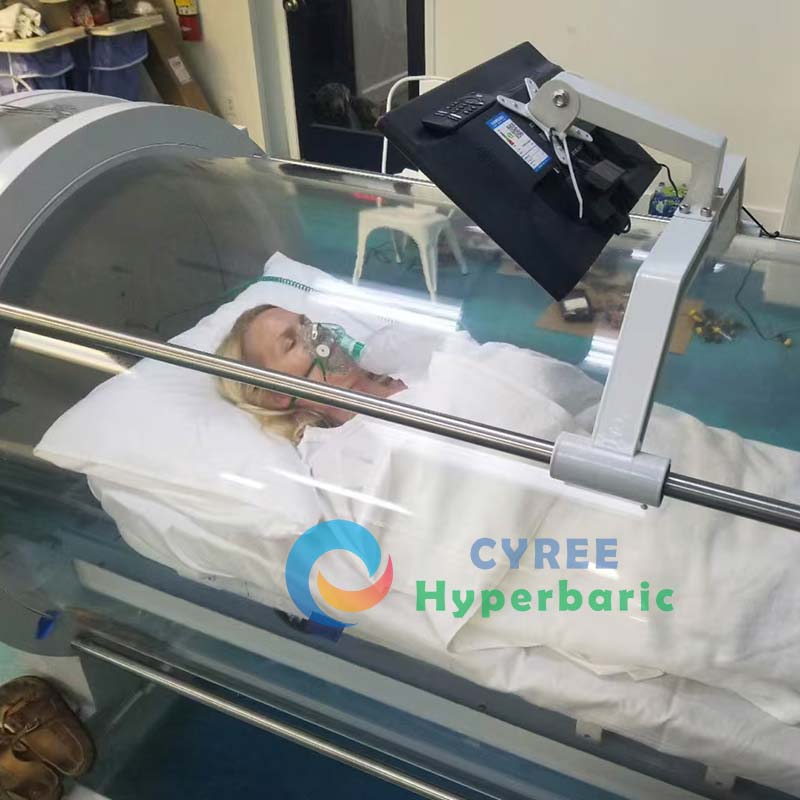

Television
Patients can enjoy watching TV programs during the therapy.

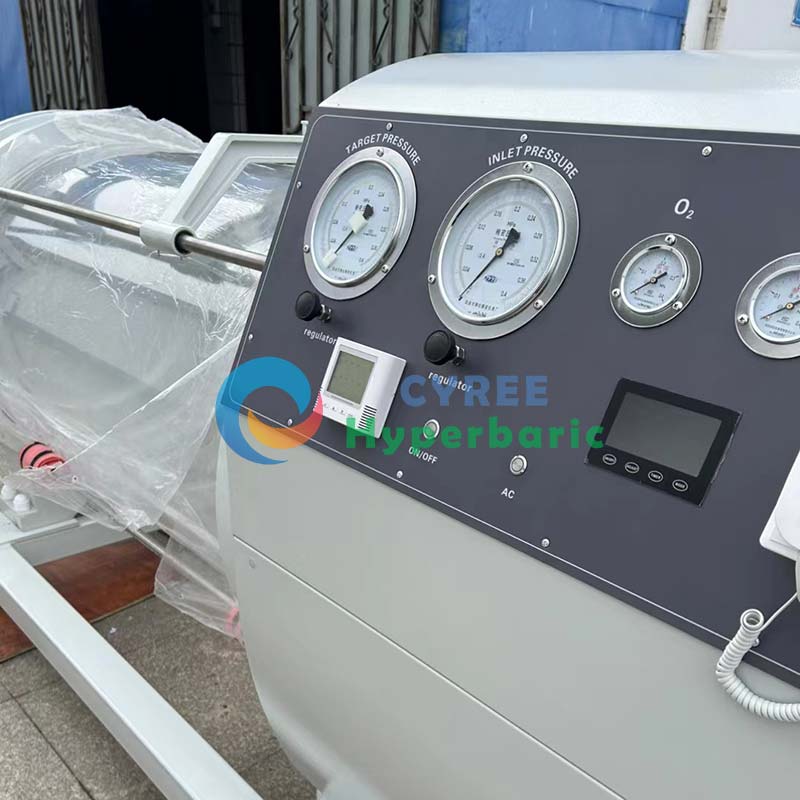

Control Panel
There are knobs, meters, and display on the control panel for easy operation.

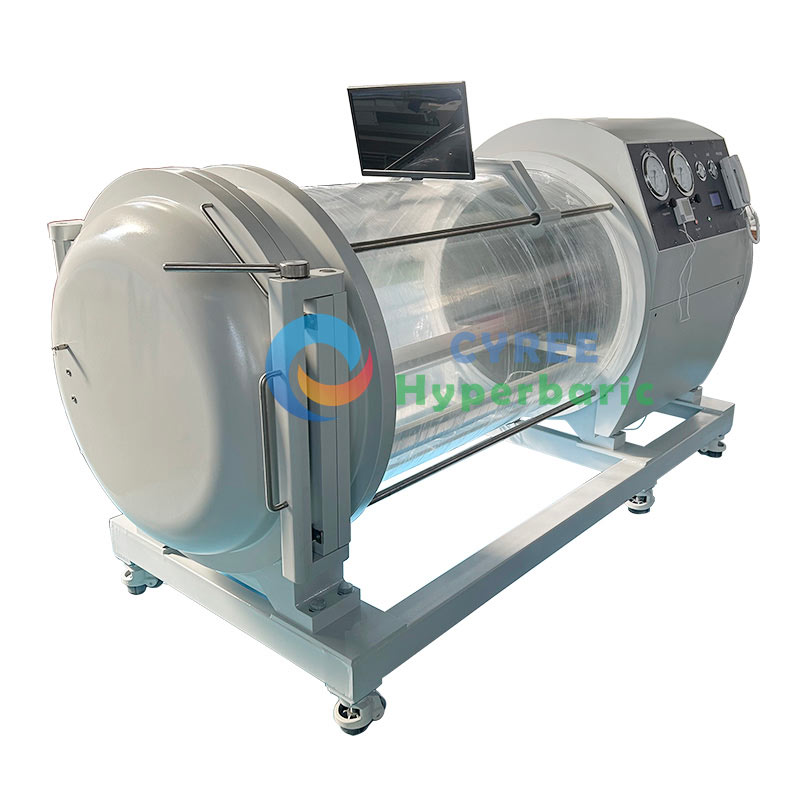

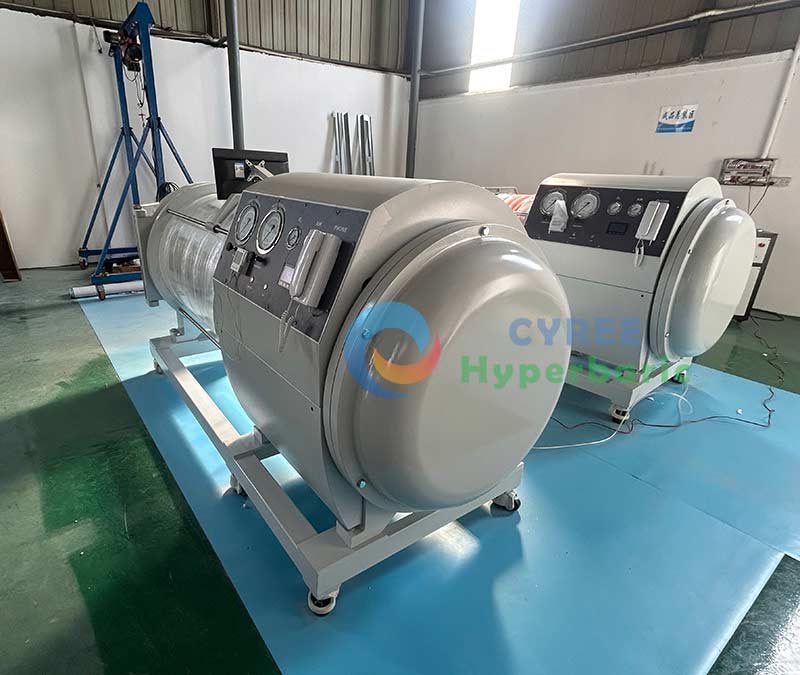

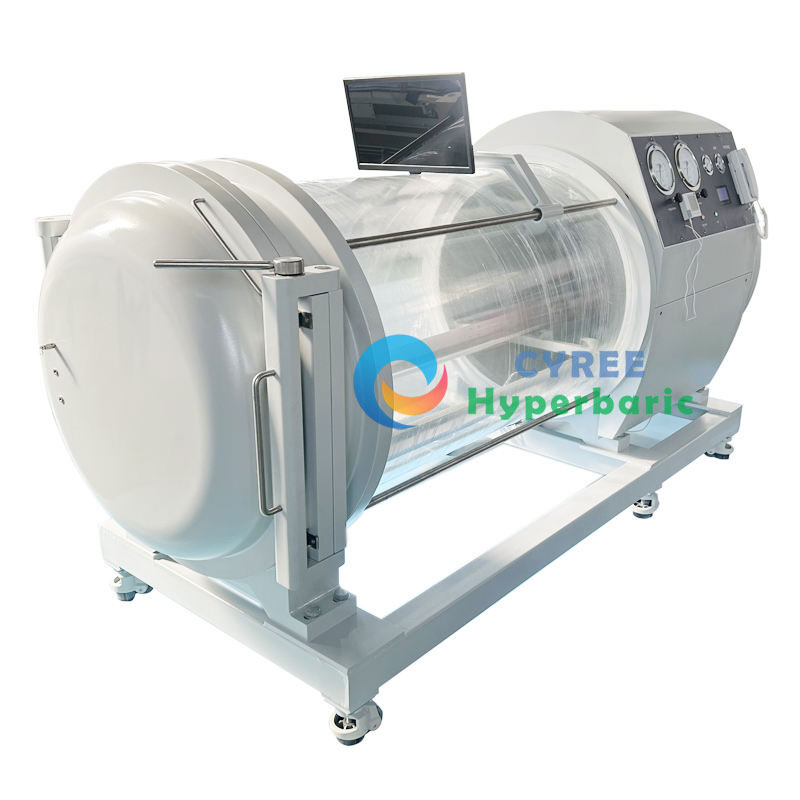

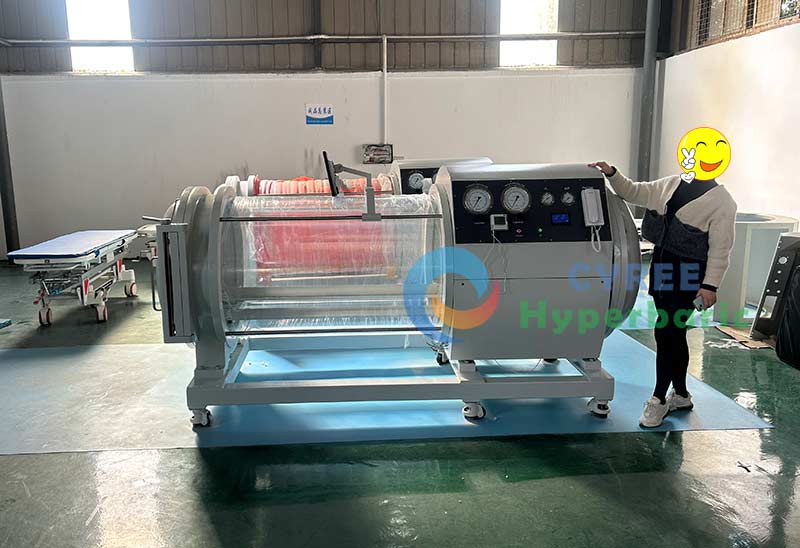

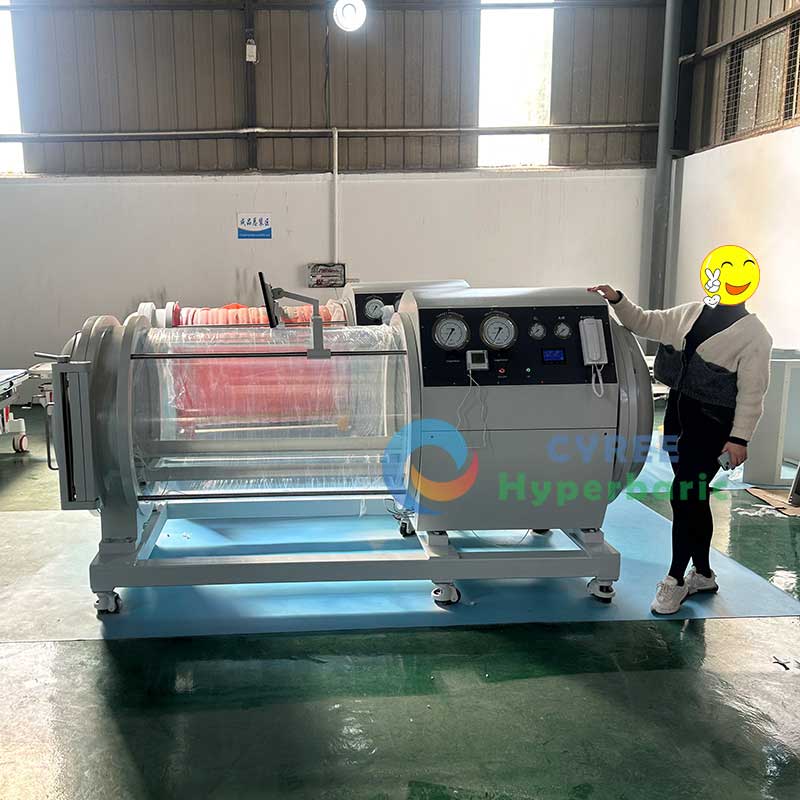

Product Show of hyperbaric oxygen chamber

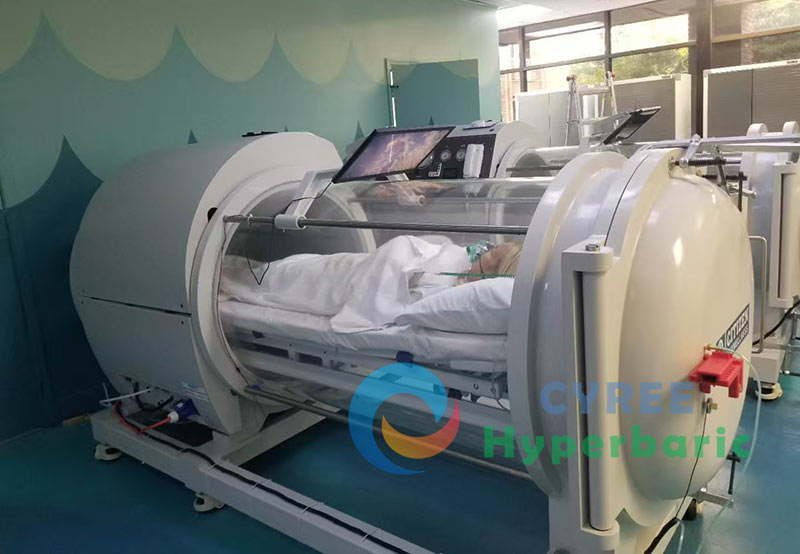

Our 3 ATA hyperbaric oxygen chamber is a highly safe and comfortable device. Its pressure is adjustable, allowing doctors to customize settings based on each patient’s specific condition. The spacious interior prevents patients from feeling confined. Equipped with a television and air conditioning, patients can relax comfortably during treatment.
The entire system comes fully integrated with an oxygen generator and air compressor, eliminating the need for additional oxygen supply sources. You can begin treatment directly using our hyperbaric chamber.
Our hyperbaric oxygen chambers can enhance your blood oxygen levels, promote blood circulation, and improve your overall physical condition. You can use our oxygen chambers for wellness, beauty treatments, fatigue relief, and as an adjunct therapy for various medical conditions. Till now, our chambers have been widely applied in various kinds of scenarios, such as clinics, hospitals, homes, beauty salons, gyms, spas, hotels, hyperbaric oxygen therapy centers, rehabilitation centers, plateaus, confinement centers, old people’s homes, sports centers, etc.
Introduction about our factory of hyperbaric oxygen chamber
CYREE is a one-stop manufacturer for hyperbaric oxygen chamber by integrating R&D, design, production, sales and service. Located in China, our factory covers an area of 20,000 square meters, equipped with a series of advanced production equipment and precise testing instruments. We have passed ISO9001, ISO13485 and ISO14001 quality management systems and we have obtained a series of certification for our hyperbaric chambers such as CE, EMC, LVD, FCC, etc. We are not only a golden hyperbaric chamber supplier, but also an experienced exporter. Till now, we have shipped thousands of hyperbaric chambers to our customers worldwide to help them do successful business or improve their health conditions.
